Samsung Galaxy S22 Charging Port Replacement: A Comprehensive Guide

Your Samsung Galaxy S22 is a powerful device, but like any smartphone, it may develop issues over time. One of the most common problems users face is a faulty charging port, leading to difficulties in charging or connecting to other devices. If you’re experiencing slow charging, intermittent connections, or complete charging failure, it may be time for a charging port replacement.

At GadgetClub, we provide fast and reliable Samsung Galaxy S22 charging port repair services in Witham, Braintree, Colchester, and Chelmsford. Whether you prefer a DIY approach or want a professional repair, this guide will walk you through the charging port replacement process step by step.

Step 1: Assess the Issue

Before replacing the charging port, check if the problem is actually caused by it:

✔ Test with a different charger and cable to rule out accessory issues.
✔ Inspect the charging port for dust, lint, or debris—a simple cleaning might fix the issue.
✔ Try wireless charging—if it works, the issue is likely with the charging port.

If the problem persists after these steps, replacing the Samsung Galaxy S22 charging port may be necessary.

Step 2: Gather Your Tools

To replace the charging port, you’ll need the following tools:

✔ Small Phillips screwdriver
✔ Pentalobe screwdriver (for Samsung devices)
✔ Plastic pry tools
✔ Tweezers
✔ Suction cup (for screen removal)
✔ Heat gun or hairdryer (to loosen adhesive)
✔ Replacement charging port assembly (compatible with the Samsung Galaxy S22)

Step 3: Backup Your Data

Before starting the repair, backup all important data to avoid losing photos, contacts, and messages.

✔ Use Samsung Cloud or Google Drive for an automatic backup.
✔ Connect your phone to a computer and use Samsung Smart Switch to create a local backup.
✔ Double-check that all essential files are safely stored.

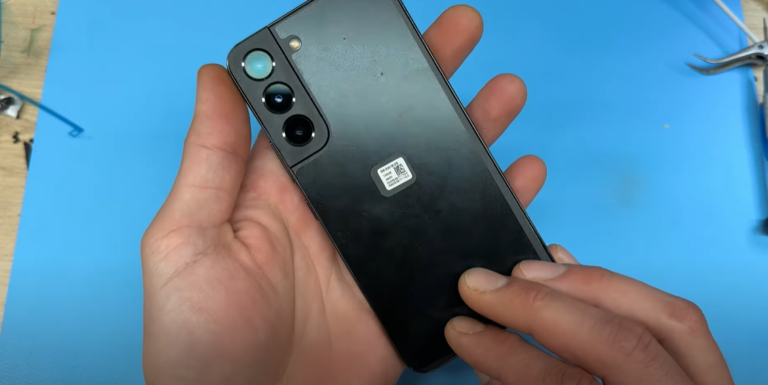

Step 4: Disassemble Your Samsung Galaxy S22

🔹 Power off your phone completely before starting.

1️⃣ Remove the SIM tray using a SIM ejector tool.

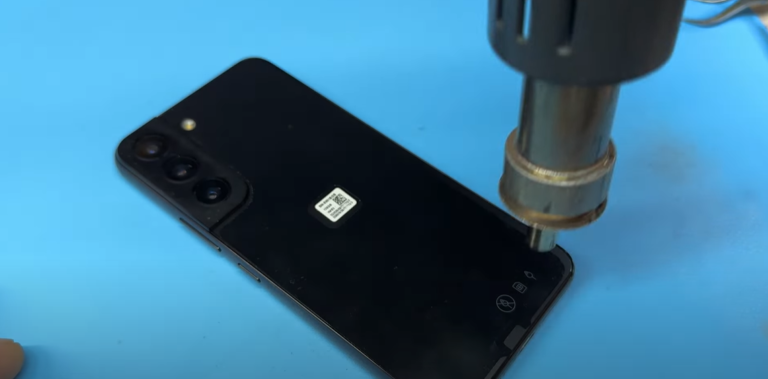

2️⃣ Heat the back panel using a heat gun or hairdryer to loosen the adhesive.

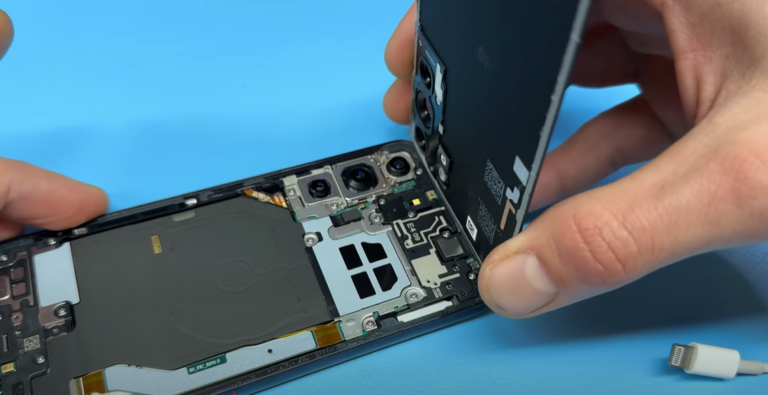

3️⃣ Use a suction cup and plastic pry tool to carefully lift and remove the back cover.

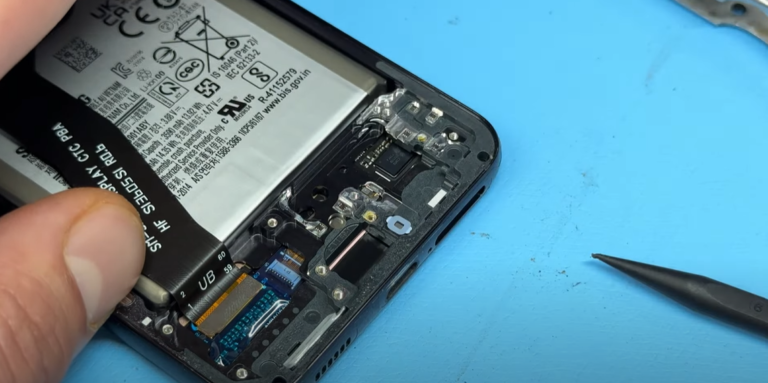

4️⃣ Disconnect the battery to avoid short circuits during the repair.
5️⃣ Locate the charging port at the bottom of the device.

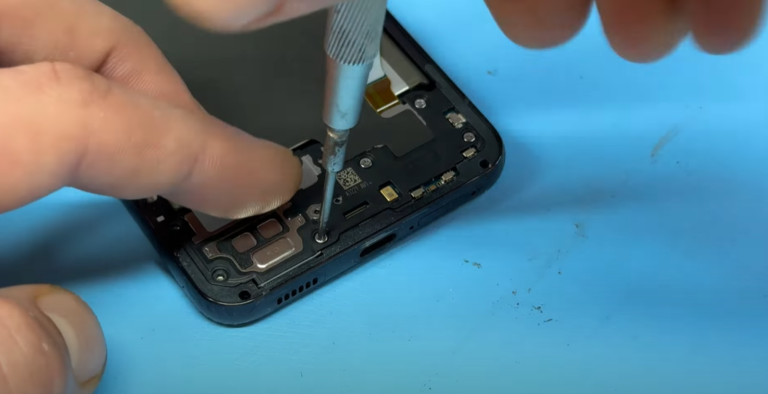

6️⃣ Remove the screws and disconnect flex cables attached to the charging port.
7️⃣ Gently lift out the charging port assembly from the device.

Step 5: Replace the Charging Port

1️⃣ Align the new charging port assembly in place.
2️⃣ Reconnect all flex cables securely.
3️⃣ Screw the charging port module back into position.
4️⃣ Ensure all connections are properly attached before reassembling the device.

Step 6: Reassemble Your Samsung Galaxy S22

1️⃣ Reconnect the battery cable securely.
2️⃣ Reattach the back panel and apply light pressure to secure it.
3️⃣ Reinsert the SIM tray.
4️⃣ Turn on your phone and check for proper functionality.

Step 7: Test Your Samsung Galaxy S22

After replacing the charging port, test the following:

✔ Plug in your charger and confirm the device charges properly.
✔ Connect to a PC or laptop to ensure data transfer works.
✔ Test wireless charging to verify it’s still functional.
✔ Check the charging speed—your phone should support fast charging if using a compatible adapter.

Step 8: Restore Your Data

If everything is working correctly, restore your data:

✔ Use Samsung Cloud or Google Drive to retrieve backed-up files.
✔ Reinstall any apps that may need fresh updates.
✔ Confirm that all settings and preferences are restored correctly.

Conclusion

Replacing the Samsung Galaxy S22 charging port may seem challenging, but with the right tools and careful steps, it’s a manageable repair. However, if you’re not comfortable performing the repair yourself, GadgetClub offers professional Samsung Galaxy S22 charging port replacement services in Witham, Braintree, Colchester, and Chelmsford.

Our certified technicians use genuine Samsung parts, ensuring fast, safe, and reliable repairs to get your phone working like new again. Visit us today or book a repair appointment!
